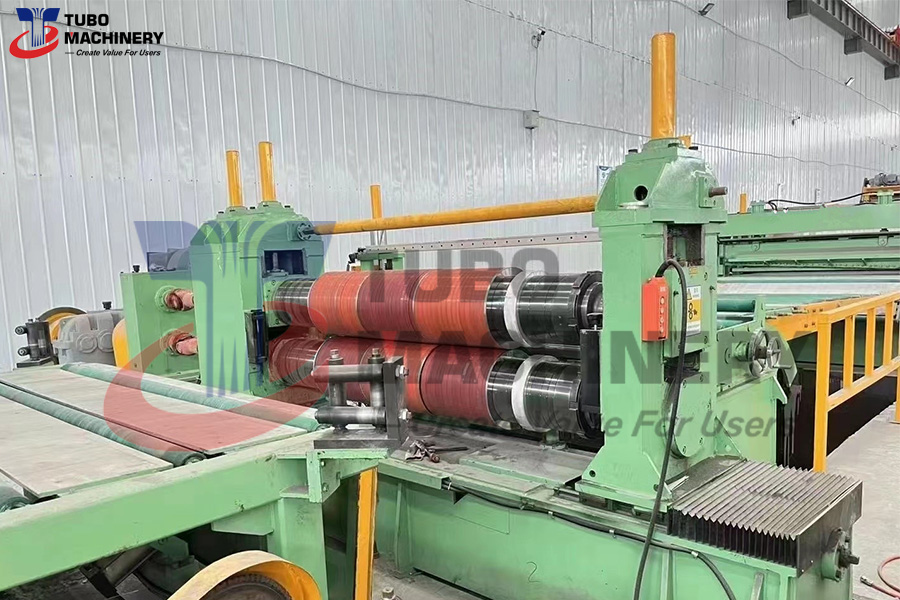

ZJ1600*4 Slitting Line

It is Used for slitting the wide raw material coil into narrow strips in order to prepare material for subsequent processes as milling, pipe welding, cold forming, punch forming, etc. Moreover, this line can also slit various non ferrous metal coils by changing slitting tools of different materials.

product details

Model List of Tube Mill

Process Flow

Coil-loading → Double-mandrel uncoiling → Coil-end-feeding & shoveling → Double-roller pinch feeding/three-roller leveling → End-cutting → Hole Accumulator1 → Strip-aligning → Diskshearing→Scrapreeling→HoleAccumulator2→Pre-separator/Tensioner→Recoiling →Coils-discharging → Hydraulic control → Electric control

010203

Basic Information of ZJ1600*4 Slitting Line
Product	Slitting Line
Applicable Material	HR/CR,Low Carbon Steel Strip Coil ,Q235,S235,Gi,ST37 Strips,and so on.
Width	600 - 1600mm
Thickness	0.8 - 4.0mm
Max. Speed	100m/min (can customized)
Components of The Slitting Line	1. Coil Loading Car 2. Single Mandrel Un-Coiler 3. Coil-End Feeding & Shoveling Equipment 4. Double-Roller Pinch Feeder, Three-Roller Leveler 5. Hole Accumulator (1) 6. Aligning Equipment 7. Disc Shearing Machine 8. Scrap Reeler 9. Hole Accumulator (2) 10. Pre-separator and Tensioner 11. Re-boiler and Separator 12. Coil-discharging car

Model List of Slitting Line
Model	Thickness	Width	Coil weight	Finished slit width	Max. slitting speed
ZJ-1×600	0.2~1mm	100~600mm	Max. 8MT	Min.20mm	Max.150 m/min
ZJ-2×1250	0.3~2mm	300~1250mm	Max. 15MT	Min.25mm	Max.150 m/min
ZJ-3×1300	0.3~3mm	300~1300mm	Max. 20MT	Min.25mm	Max.150 m/min
ZJ-3×1600	0.3~3mm	500~1600mm	Max. 20MT	Min.25mm	Max.150 m/min
ZJ-4×1600	0.4~4mm	500~1600mm	Max. 30MT	Min.30mm	Max.120 m/min
ZJ-5×1500	0.6~5mm	500~1500mm	Max. 30MT	Min.40mm	Max.100 m/min
ZJ-6×1600	1~6mm	600~1600mm	Max. 30MT	Min.50mm	Max.100 m/min
ZJ-8×1800	2~8mm	600~1800mm	Max. 35MT	Min.50mm	Max.80 m/min
ZJ-10×2000	3~10mm	800~2000mm	Max. 35MT	Min.60mm	Max.70 m/min
ZJ-12×1800	3~12mm	600~1800mm	Max. 35MT	Min.60mm	Max.30 m/min
ZJ-16×2000	4~16mm	800~2000mm	Max. 40MT	Min.100mm	Max.30 m/min
ZJ-20×2200	5~20mm	800~2200mm	Max. 40MT	Min.100mm	Max.20 m/min
Noted: The data in the form just as reference according to general ranges, we always design and make each sheet slitting line according to each customer's specific requirement, so each customer can buy his own well-content coil slitting machine from us.
